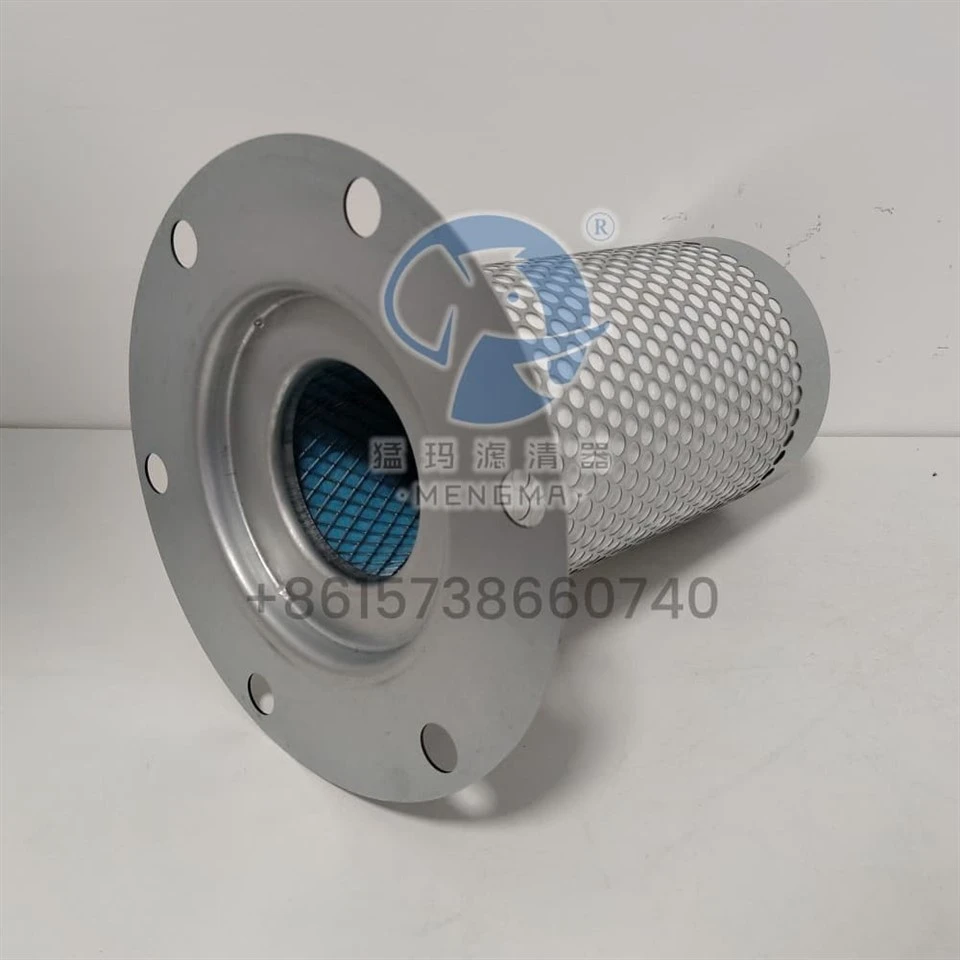

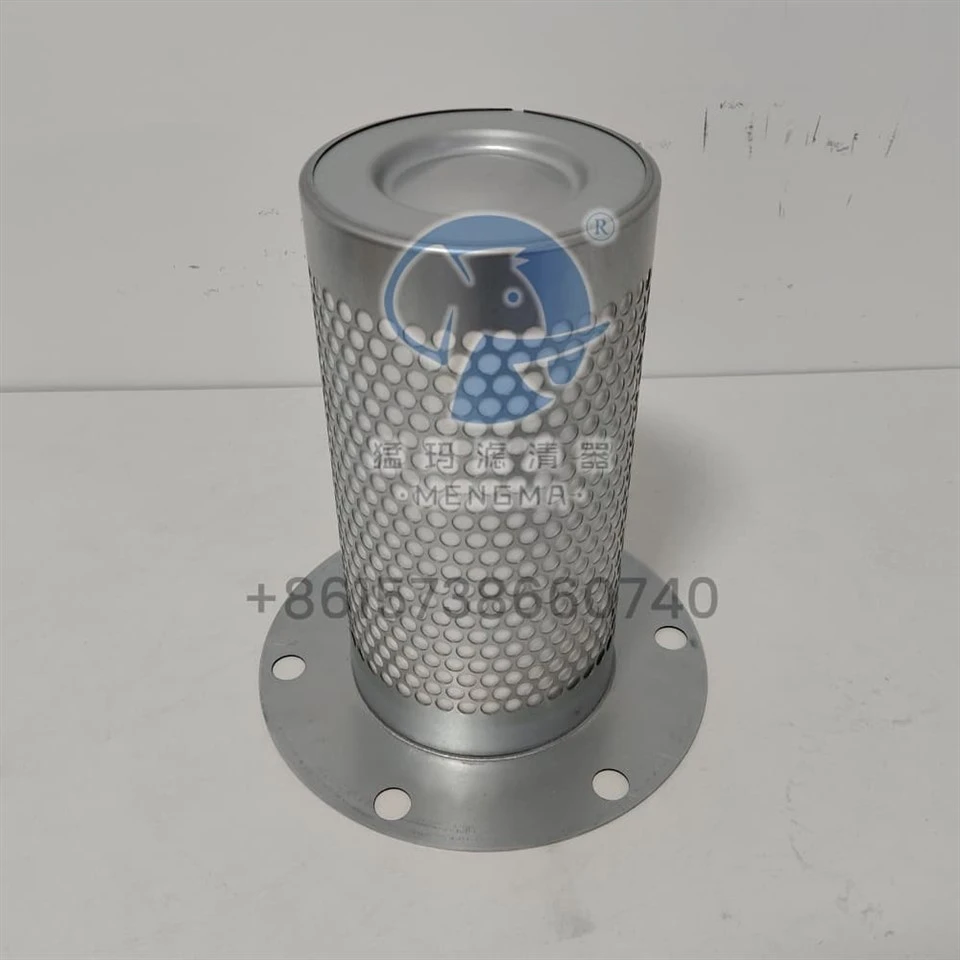

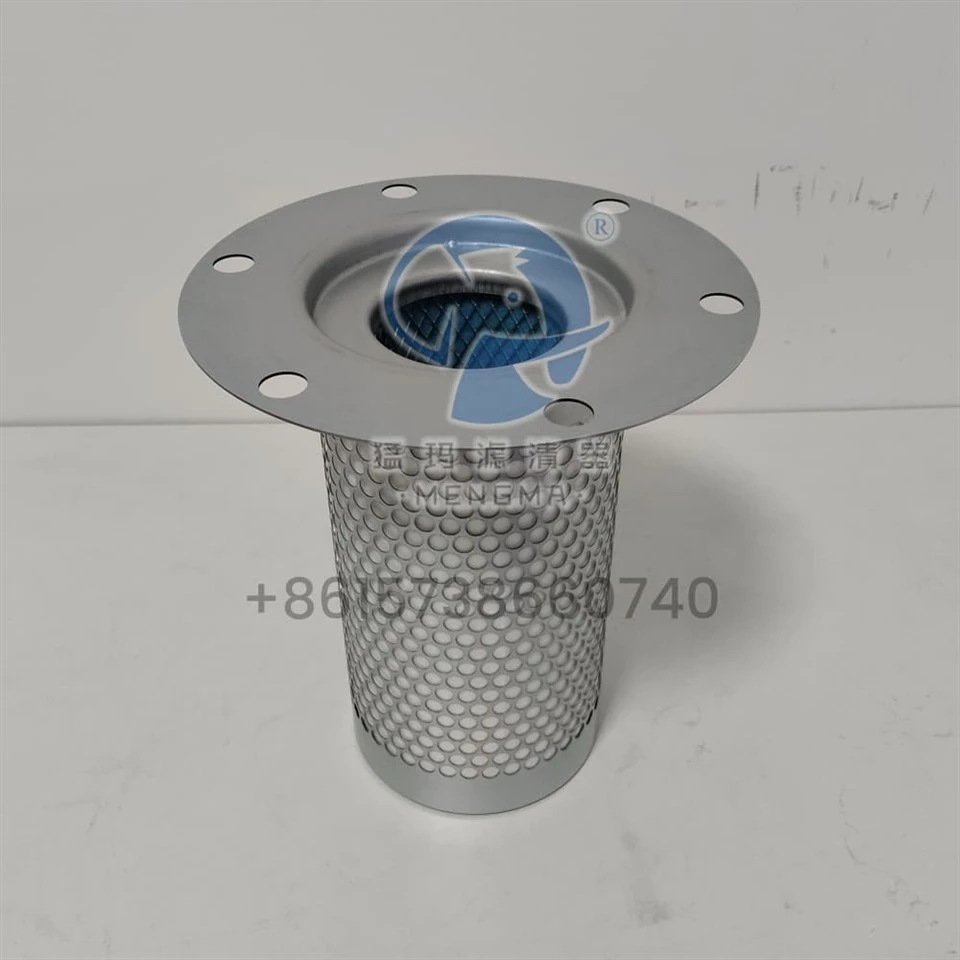

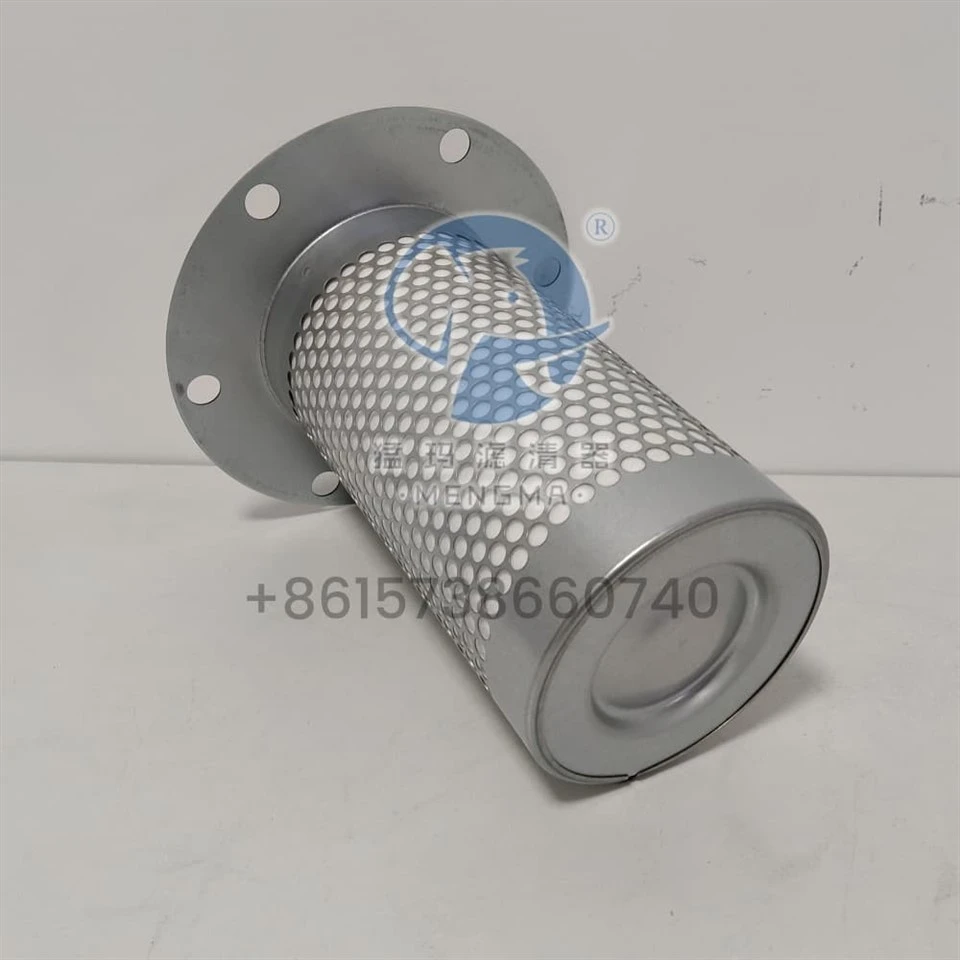

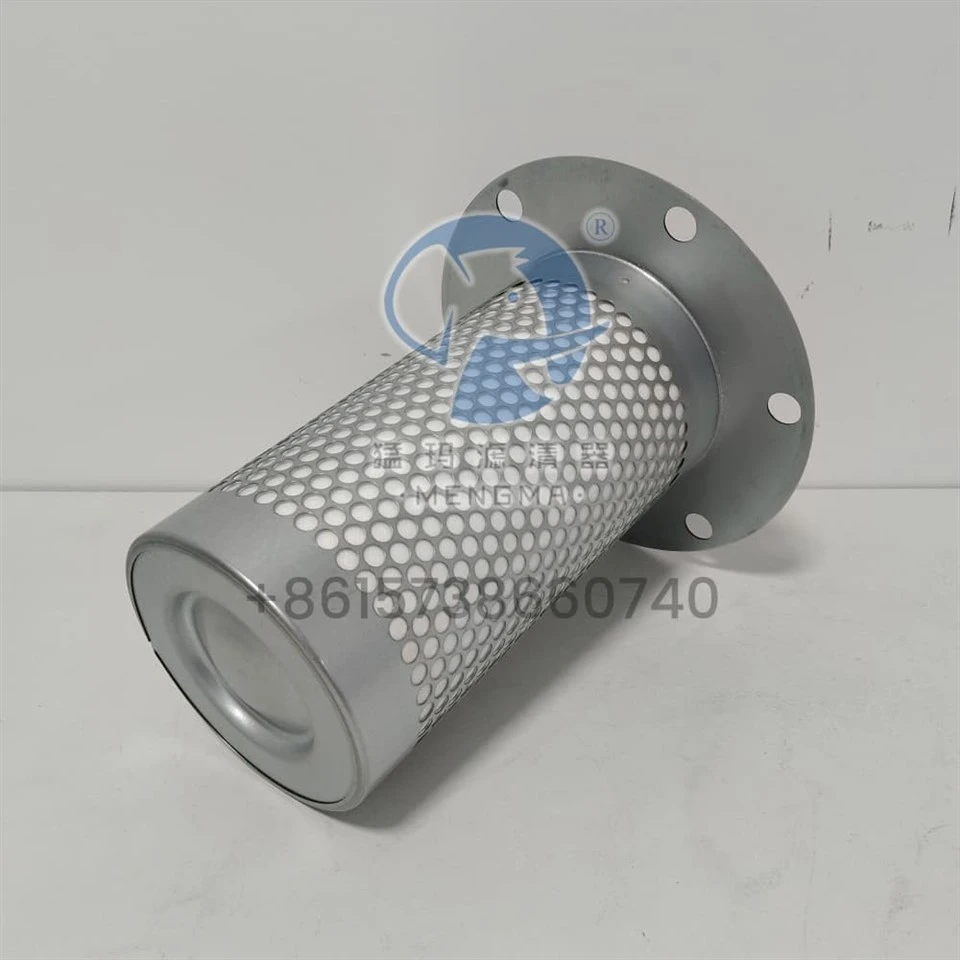

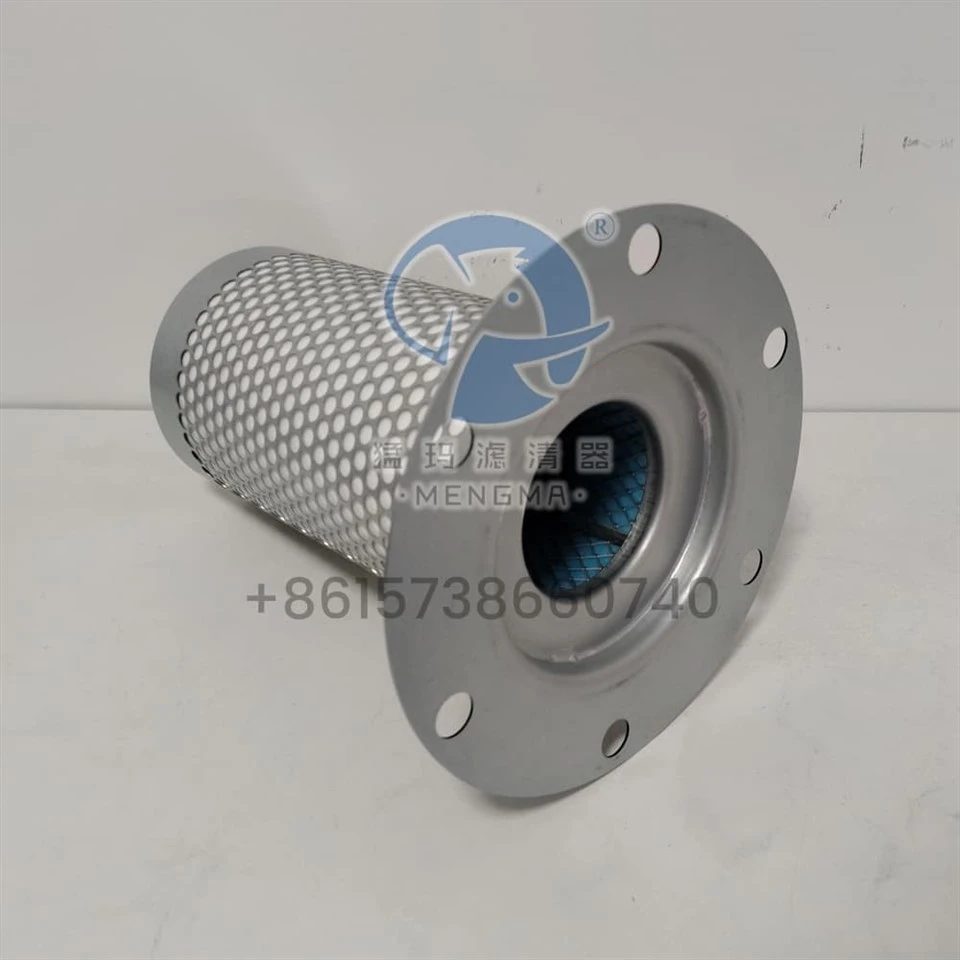

Oil Separator 1612386900 / 2901000300 Replacement
Mengma's 1612386900 and 2901000300 are interchangeable air-oil separator cartridges for GA11–GA30C screw compressors. The coalescing element captures oil mist from the compression chamber and returns it to the lubrication circuit, keeping discharge air clean and protecting downstream equipment.
| Item | Data |
|---|---|
| Part No. | 1612386900 / 2901000300 (interchangeable) |
| Fits | GA11, GA15, GA18, GA22, GA30C |
| Type | Air-oil separator cartridge |
| Media | Imported HV & Lydall fiberglass |
| Filtration precision | 0.1 μm |
| Separation efficiency | 99.999% |
| Residual oil carryover | ≤ 3 ppm |
| Initial pressure differential | ≤ 0.02 MPa |
| Working pressure | 0.8 MPa |
| Working temperature | -10°C to +100°C |
| Outer diameter | 220 mm |
| Height | 250 mm |
| Weight | 2.2 kg |
| Service life | 3,500–6,000 hours |
| Cross-reference | 1612386901, 2901000300, 1612386900 |
