Compressor Precision Filter Cartridge 0180EP | Efficient Pre-filtration, Reliably Protects Downstream Equipment
XINXIANG MENGMA FILTER CO., LTD. | Phone/WhatsApp: +86 150 9033 8589
Product Profile

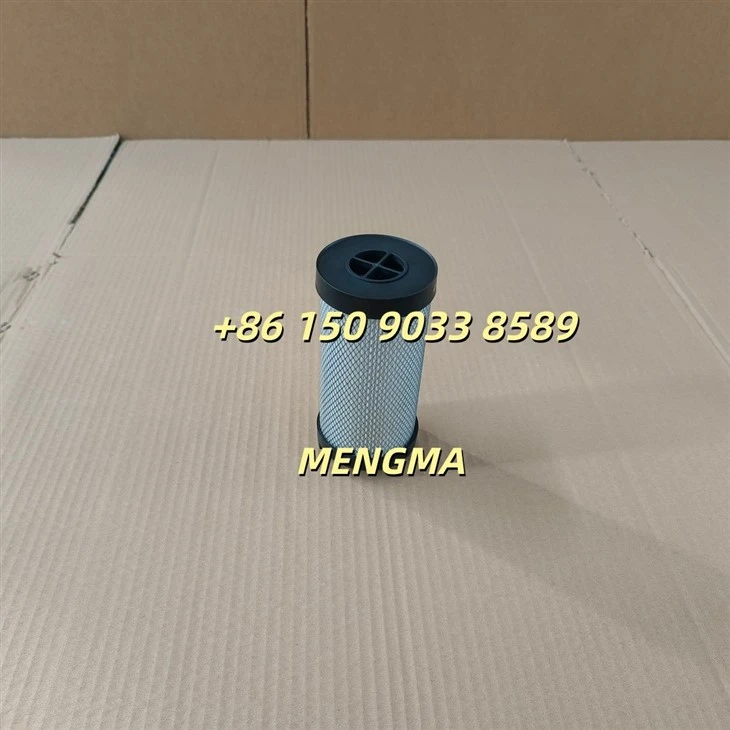

The 0180EP is a main line precision filter cartridge designed to remove liquid water, oil mist, and solid particles larger than 3 microns from compressed air. Installed upstream of dryers or fine filters, it serves as a reliable pre-filtration unit to protect critical downstream equipment and ensure a stable supply of production air. Suitable for various industrial compressed air systems.
Key Benefits
Effective Protection: Efficiently separates liquid water and oil, significantly reducing the load on downstream dryers and fine filters.
Robust & Durable: Stainless steel inner/outer support provides a sturdy structure for stable operation under high pressure.
Economical & Energy-Saving: Optimized pleat design offers high dirt-holding capacity and low pressure drop, extending service life and reducing system energy consumption.
Easy Compatibility: Manufactured to common industry dimensions for direct installation into various mainstream filter housings.
Main Specifications
| Item | Specification |
|---|---|
| Product Model | 0180EP (Flow Code: F0180) |
| Filtration Rating | ≥3 μm (Liquid & Particles) |
| Initial Residual Oil | ≤5 ppm (by weight) |
| Max. Operating Pressure | 1.0 MPa (10 bar) |
| Rated Flow Capacity | 5.1 m³/min (at 7 bar, 20°C) |
| Replacement Delta-P | 0.07 MPa |
| Max. Operating Temperature | 66°C |
| Media & Structure | Glass Fiber Media, Stainless Steel Support |
| Installation Position | After after-cooler & air receiver, before dryer. |
Application & Maintenance
Core Function: Serves as the first line of精密 defense in compressed air purification, primarily protecting dryers from liquid water and oil that can impair their efficiency and lifespan.
Replacement Signal: Replace when pressure drop exceeds 0.07 MPa or downstream air quality deteriorates. Regularly check drain function.
Installation Note: Ensure system is depressurized before installation. Check seals and install in the correct direction as indicated by the flow arrow on the cartridge.
