Products Description
The most common failure mode of oil-gas separators is not "decreased separation efficiency," but rather "the filter element collapses before the differential pressure alarm sounds." When the filter element gradually collapses inward under high differential pressure conditions, the separation layer is compressed, the filtration area decreases drastically, and the oil-gas mixture bypasses directly through the collapsed gaps. However, the compressor's differential pressure alarm is mounted on the housing and measures the pressure difference between the inlet and outlet, not the degree of collapse inside the filter element. By the time the alarm light finally illuminates, the filter element may have already collapsed for hundreds of hours, during which time the oil content in the compressed air has already exceeded the standard.

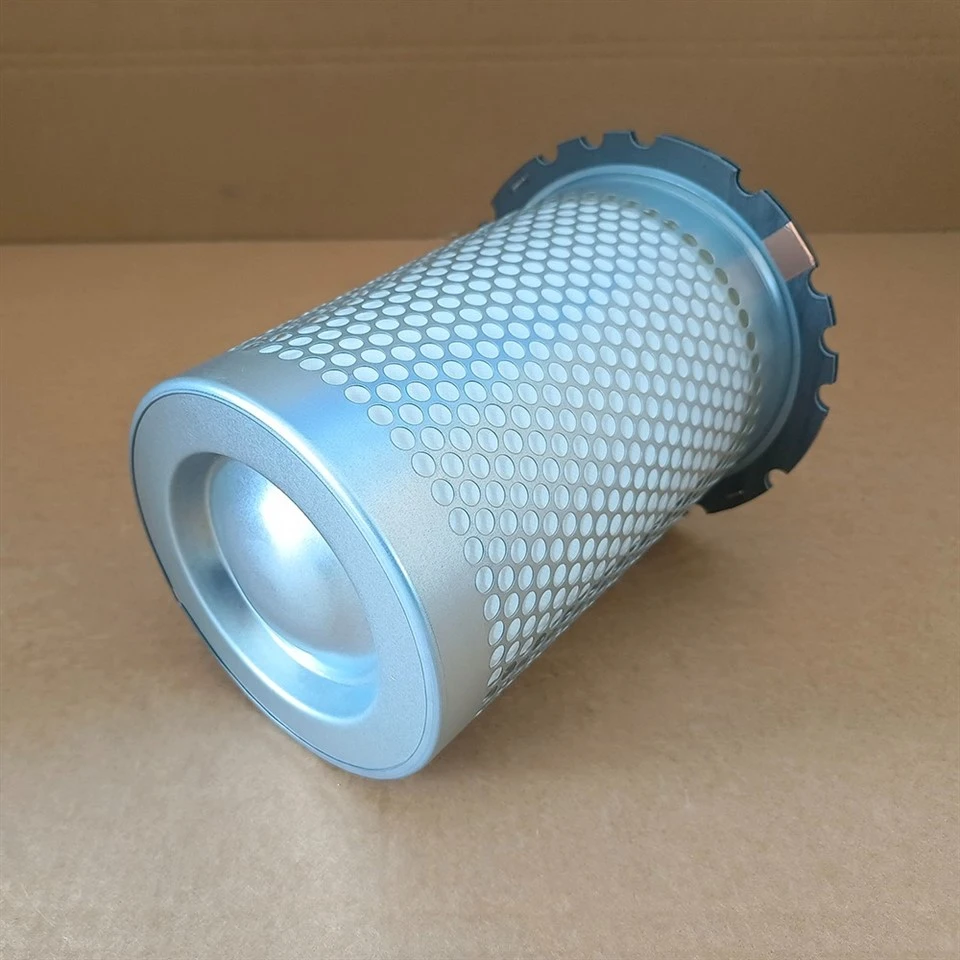

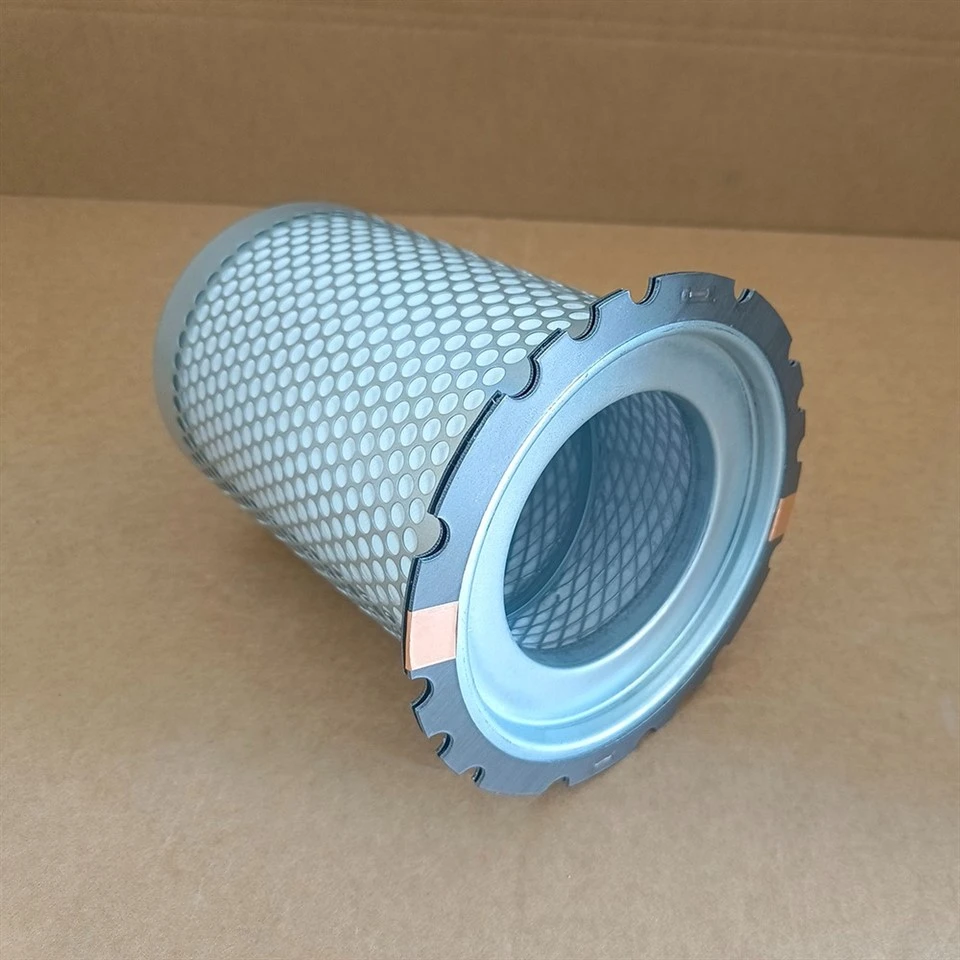

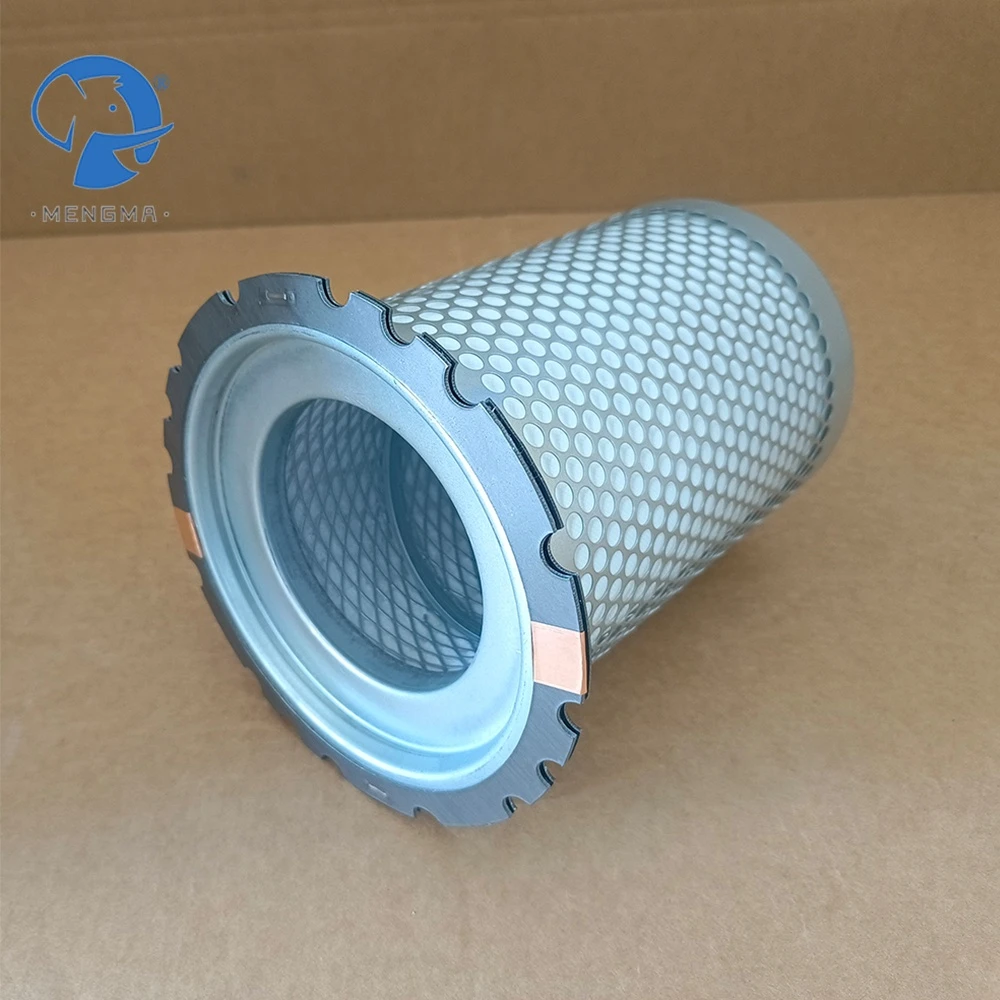

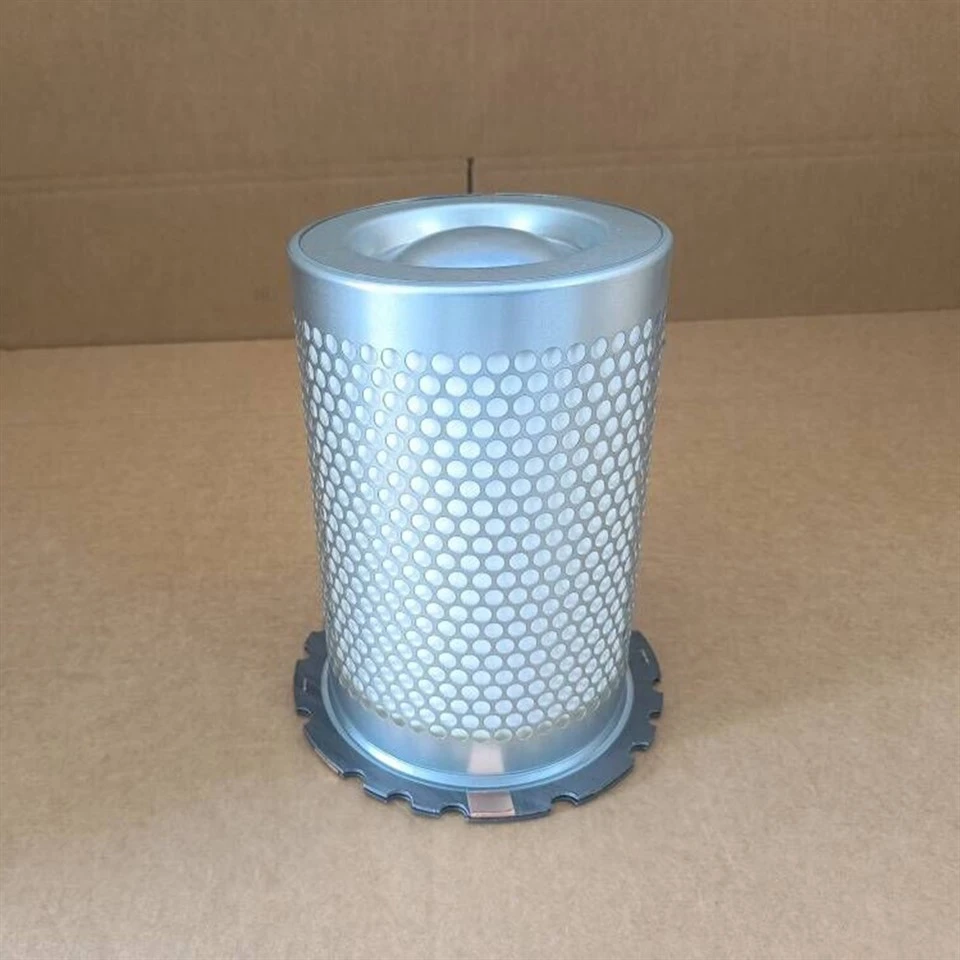

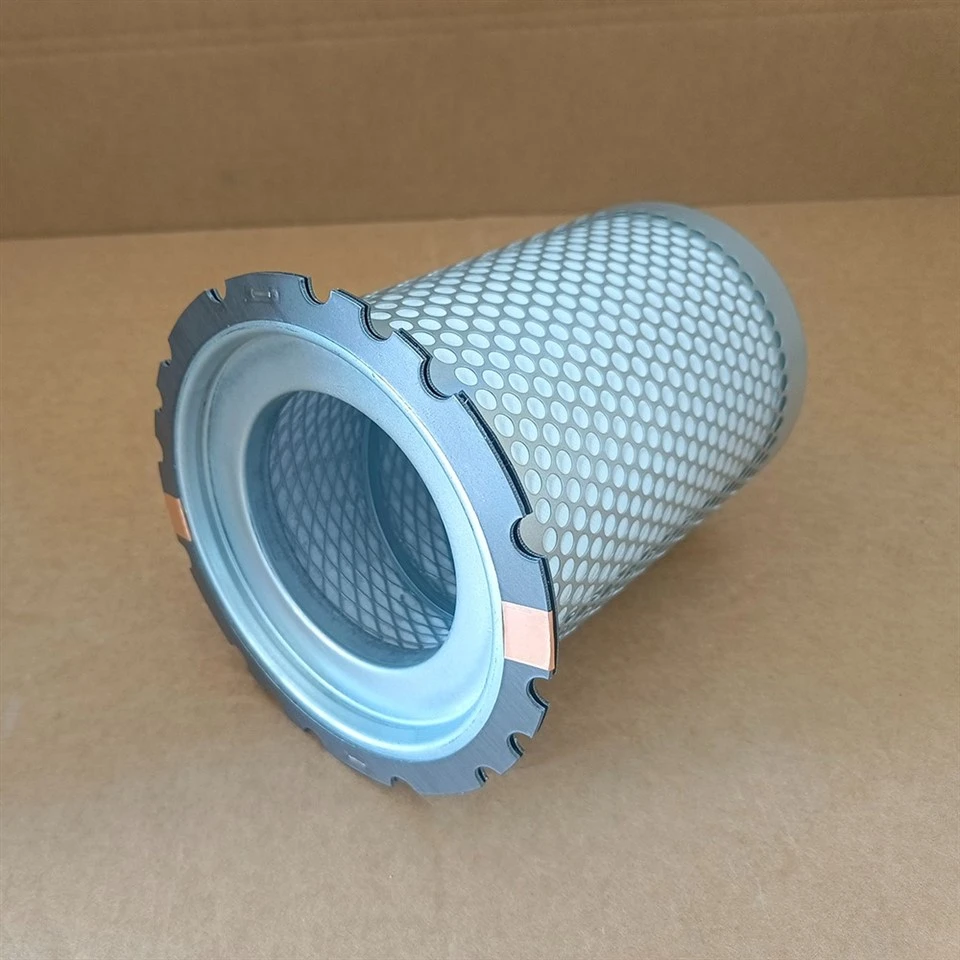

6.2011.1 Rigid structure is used as a core design indicator. A combination of steel metal parts, nylon end caps, and metal-to-metal welding is used to maintain shape under pressure, maintain maximum surface area to improve performance, maintain a uniform differential pressure distribution, and prevent the oil-gas separator from collapsing due to excessive differential pressure, causing the compressor to shut down. The service life under standard operating conditions can reach 3000–4000 hours.
Company Introduction
Xinxiang Mengma Filter (2008, Xinxiang, China's filter hub) produces air compressor three filters & accessories for power, petrochem, metallurgy, medicine, environment. Markets: China, US, Europe, SE Asia, Russia, India, Pakistan, Central Asia, Middle East. One‑stop R&D to after‑sales.
Qualification Certificate
Packaging and Transportation
FAQ
Q1. What is your T/T payment deposit requirement?
A: A 30% deposit is required, with the remaining 70% paid before shipment.
Q2. Who pays for the sample and courier fees?
A: Customers are responsible for both the sample cost and the courier fee.
Q3. Do you test all products before they leave your factory?
A: Yes, we perform a 100% test on every item prior to delivery.
Hot Tags: reliable oil separator element for screw air compressor 6.2011.1, manufacturers, suppliers, factory, for sale
