Product Definition and Core Functions
An oil filter is one of the three consumable components in an air compressor (air filter, oil filter, and oil separator). Its main function is to filter out solid impurities such as metal shavings, carbon deposits, and sludge generated during the lubricating oil's circulation process or introduced from external sources.
Its core value lies in three aspects of protection:
- Protecting the main unit: Preventing impurities from directly entering the main unit, avoiding serious malfunctions such as cylinder scoring or seizure.
- Protecting the oil passages: Ensuring the cleanliness of the lubricating oil, preventing oil passage blockage, and maintaining the normal pressure of the lubrication system.
- Protecting the oil itself: Extending the service life of the lubricating oil, as the catalytic effect of impurities accelerates oil oxidation and deterioration.
Core performance indicators
- Filtration Accuracy: Measures the smallest particle size that a filter element can filter. Higher accuracy usually means better protection, with 10-15 μm (micrometers) being the mainstream standard, and high-end products reaching 5 μm.
- Filtration Efficiency: Refers to the percentage of particles of a specified diameter that the filter element intercepts. High-quality filter elements typically achieve 98%-99.5% or higher.
- Initial Pressure Drop: The resistance a new filter element generates to oil flow; it should be as low as possible to reduce energy consumption.
- Dirty Holding Capacity: The total weight of impurities that the filter element can hold before becoming completely clogged. Higher dirt holding capacity means a longer service life.
- Service Life: Typically 1500-2000 hours, depending on the operating environment; harsh environments require shorter replacement cycles.
- Bypass Valve Opening Pressure: The pressure at which the bypass valve automatically opens when the filter element becomes clogged.
Comparison of mainstream filter materials
| Filter media type | Features | Application scenarios |
| Fiberglass | High filtration accuracy and large dirt holding capacity | High-quality, long-lasting filter cartridges |
| Wood pulp paper | Low cost and good filtration performance | Economy filter element |
| Synthetic fiber | High strength and chemical corrosion resistance | Applications requiring special chemical stability |
| Metal mesh | Robust structure, washable, low precision | As a coarse filter or in specific operating conditions |
| Composite filter media | Combining the advantages of multiple materials, achieving balanced performance | High-performance universal filter element |

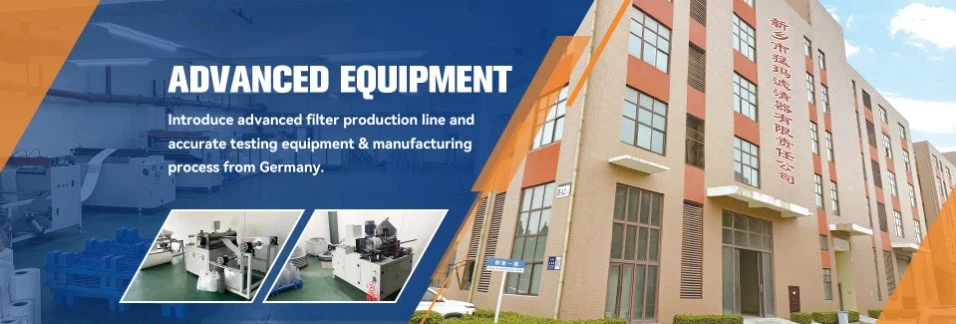

Company Introduction
As a high-tech modern manufacturer integrating research, production, and sales of filter elements and filtration equipment, Mengma Filtration Technology LLC brings 17 years of experience in producing air compressor filters. Our company is equipped with advanced filter production lines, accurate testing equipment, high-quality sales teams, and a perfect after-sales system.
Packaging and Transportation
Compressor repair air filter cartridges are packed either in a single carton case or according to customer request.
All items are carefully packed for safe delivery, with cartons used as standard outer packaging. Please let us know if you have any special requirements.
For items in stock, delivery usually takes 3–5 working days after payment is received. If reproduction is needed, expect 7–10 days after we receive the prepayment (upon request).
Available delivery ports: Shanghai, Tianjin, Qingdao.
FAQ
Q1. What is your terms of packing?
A: Normally, we use neutral white boxes and brown cartons for packaging. In cases where you hold a legally registered patent, we can apply your branded boxes after receiving your authorization letters.
Q2. What is your terms of MOQ?
A: Each item comes with its own minimum order quantity, which will be clearly indicated on our quotation sheet. For assorted items, the MOQ is open to negotiation.
Q3. What is your terms of quote?
A: All prices and conditions are provided in US Dollars, based on either FOB Shenzhen and Guangzhou or CIF to your country's port. The quoted prices remain valid for one month.
Q4. How about your delivery time?
A: For stocked items, the lead time is roughly 3 days after payment is received. If production is required, delivery takes about one week after we receive the requested prepayment.
Q5. Can you produce according to the samples?
A: Yes, manufacturing according to your samples or technical drawings is feasible. We are also capable of building the necessary molds and fixtures.
