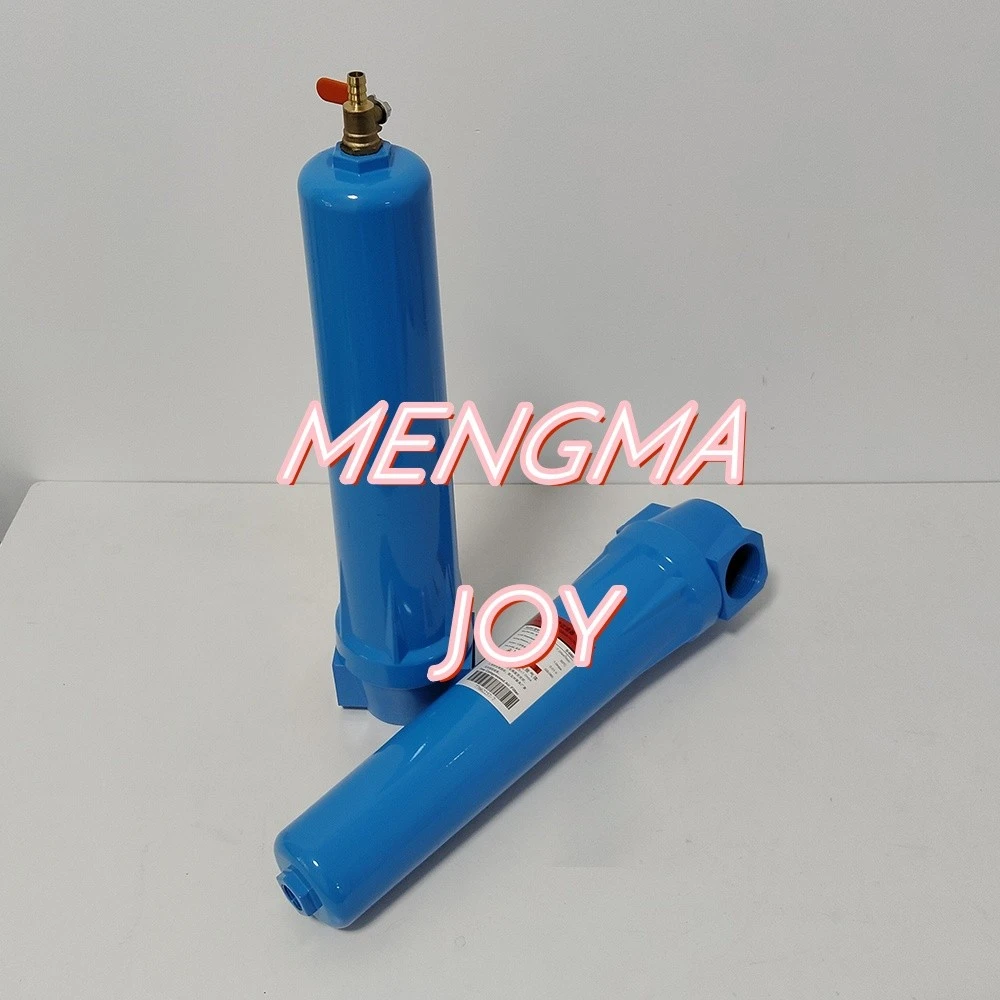

Compressed Air Precision Filter 060-Q P S Series – Oil-Water Separation & Particulate Filtration
Product Specifications
| Parameter | Details |
|---|---|
| Model Designation | 060-Q / 060-P / 060-S |
| Port Connection | Standard Industrial Thread |
| Q-Grade Function | Coarse Particle Interception |
| P-Grade Function | Moisture Condensation & Drainage |
| S-Grade Function | Oil Aerosol Coalescence |
| Pressure Rating | Industrial Grade |
| Thermal Endurance | Industry Standard |
| Element Material | Synthetic Glass Fiber Composite |
| Body Material | Corrosion-Resistant Alloy |
| Condensate Discharge | Manual Valve / Auto Drain Optional |
| Element Service Cycle | Based on Duty Hours |
Product Description
General Introduction
Designed for industrial compressed air networks, the 060-Q/P/S Precision Filter Series delivers comprehensive air treatment by eliminating suspended solids, free water, and lubricant mist. This series ensures that pneumatic appliances, control instrumentation, and production assemblies receive conditioned air for consistent operation.
Grade-Specific Functions
| Grade | Classification | Role |
|---|---|---|
| 060-Q | Bulk Separation | Positioned downstream of aftercoolers – removes larger particulates to safeguard sensitive components |
| 060-P | Liquid Knockout | Installed ahead of pneumatic actuators and upstream of oil-removal stages – extracts entrained water droplets |
| 060-S | Micro-Mist Elimination | Captures sub-micron oil particles – supplies near-pure air for critical processes and dryer feed |
Performance Attributes
Advanced filtration medium – Engineered glass-fiber matrix offers high capture efficiency with low resistance to airflow
Energy-conscious configuration – Aerodynamic internal contours reduce parasitic pressure losses
Installation-friendly footprint – Streamlined envelope with universal mounting compatibility
Durable material selection – Surface-treated alloy housing withstands corrosive environments and mechanical stress
Service-oriented design – Tool-free element access and predictable replacement scheduling
Operational Principle
Untreated air enters the filter bowl and traverses the depth-type glass-fiber element. Filtration occurs via inertial impaction for larger droplets, direct interception for mid-sized particles, and Brownian diffusion for sub-micron aerosols. Coalesced liquids gravitate to the sump for periodic evacuation, while dry solids embed within the fiber matrix.
Placement Guidelines
For maximum service life and separation efficiency, locate the filter downstream of the receiver tank or refrigerated dryer, with adequate straight piping prior to the unit. Avoid placing it immediately adjacent to the compressor discharge, where elevated temperatures and saturated humidity accelerate element loading.
Common Deployment Areas
Workshop compressed air mains
Pre-treatment for desiccant and refrigerated drying systems
Point-of-use protection for pneumatic machinery
Air supply for painting booths, packaging lines, analytical instruments, and hygiene-sensitive production
Fuel gas moisture management
